OEM ODM truck GPS tracker with built in 2MB memory for data logger

Product Categories

GZ TOPSHINE TECHNOLOGY LIMITED

Contact Now

OEM ODM truck GPS tracker with built in 2MB memory for data logger

Name: OEM ODM truck GPS tracker with built in 2MB memory for data logger
Brand: Topshine(Support OEM/ODM)
Price: 50.00 USD

Wholesale OEM ODM truck GPS tracker with built in 2MB memory for data logger from china suppliers

Place of Origin : China

Brand Name : Topshine(Support OEM/ODM)

Model Number : VT200

Certification : ce, RoHS

Packaging Details : Packing Topshine OEM ODM truck GPS tracker with built in 2MB memory for data logger

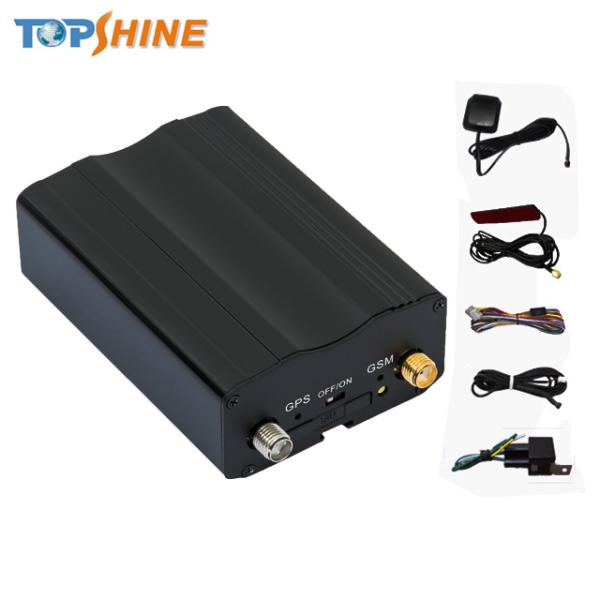

Package list: 1 main unit VT200, 1 GSM antenna, 1 GPS antenna, 1 microphone , 1 relay, 1 wiring and 1 built in 450mAh battery
Neutral color or white box
(26*16.5*

Price : $50.00/Pieces 1-99 Pieces

Type : GPS Tracker

Placement : Dashboard

OS : no system

Screen Type : No

Resolution : 1920*1080

Function : Remote Control, Distance Warning, Speed Warning, Real time gps tracking

Connection : 2G Sim Card, RS232 Port

Warranty : 2 years

Use : Automotive

Software : Free tracking software

GSM module : Legal IMEI &CE

Battery capacity : 450mAh Li-ion Battery

Data logger : 2MB memory

Certificate : CE ROHS

Over speed alarm : Support

Detect fuel consumption : Support

SOS alert : Support

Door open alert : Support

Geo fence alert : Support

Contact Now

GPS tracker VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, it has good sensitivity and stable performance. Especially, VT200 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet.

GPS tracker VT200 have built in Bluetooth chip,it can achieve smart car alarm and driver ID identify. It also can generate one driver report on the tracking platform.

OEM ODM truck GPS tracker with built in 2MB memory for data logger

Advanced smart Bluetooth tracker can achieve fully automatic anti-theft alarm and driver ID identify functions, a highly cost-effective tracking device for all kinds of vehicles, it can be used as a GPS tracker and car alarm, it can Arm/Disarm automatic by Bluetooth, also have ACC is on/Door is open/Movement alarms to protect vehicles from pilferage.

Bluetooth tracker is compatible with original car remoter, don't need to operate two remoters, it can protect vehicle in a easy and comfortable way, we can say, even when the owner leaving the vehicle with door closed but forget to lock it, the system still can Arm automatically and protecting the vehicle from theft. What's more, it is very small in size, easy concealed and installed, an ideal tracker for vehicle tracking and car security.

What is smart car alarm?

When we near the vehicle, our phone will connect with Bluetooth tracker automatically, in this moment, vehicle will be disarm immediatelly, When we leave the vehicle, our phone will disconnect with it, then vehicle will be arm automatically.

In the arm status, if someone illegal open the door/ ignition/ movement the vehicle, the tracker will cut off oil automatically, it also will send one alarm SMS and call to our preset mobile number, the siren will sounding at the same time.

What is driver ID identify?

Once our phone connect with Bluetooth tracker, Bluetooth number will be display on the online tracking platform, then we can know who drive which vehicle. Tracking platform also have driver report.

Product Name	GPS tracker VT200
Dimension	755425mm
Weight	123G
Input voltage	DC 9V~36V/1.5A
Back-up Battery	450mAh/3.7V
Power Consumption	65mA standby current
Memory	2M Byte data logger
Operating Temperature	-40°C~75°C
Humidity	5%~95%
LED	2 LED lights to show GPS, GSM status
Button	1 SOS and 1 power on/off
2G GSM frequency	GSM 850/900/1800/1900MHz
GPS Sensitivity	-160dBm
Positioning Accuracy	5meters, CEP
I/O	3 Input, 2 Output, 1 Analog input

Features

1) Smart bluetooth car alarm and driver identify
2) Tracking by SMS/GPRS (TCP/UDP)
3) Real time tracking via the web-platform
4) Get position location via call/SMS
5) Get location physical name via SMS & from the web-platform
6) Google Map link for location via SMS, it shows your location on map via mobile phone.
7) SOS Panic button
8) Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
9) Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
10) Built-in 2MB memory & position logging capacity up to 10,000+waypoints even no GPRS signal
11) Engine on/off detection
12) Remote Engine cut off to stop the car in safe condition
13) Built-in backup 450 mAh battery
14) Wiretapping/remote listening
15) Crash alarm (optional)
16) Engine on/ off alert (Optional)
17) I/O: 3 Inputs, 2 Outputs, 1 Analog Input
18) Analog input for Fuel sensor detecting/monitoring (optional)
19) More Alarm functions:
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS alert

GPS Tracking Platform

Topshine company provide free tracking platform to clients, no any monthly or yearly charge.

Web: www.track-car.com

Mobile link: www.track-car.com/m

Usernam: test1

Password: 123

Replay

Multi reports

Product Usage

Standard accessories

1 main unit VT200

1 GPS antenna

1 GSM antenna

1 wiring

1 12v/24v relay

1 SOS button

1 built in battery

Optional accessories

Ultrasonic fuel sensor

Cuttable fuel sensor

Temperature sensor

Crash sensor

Speed limiter

Microphone

Speaker

Siren

Configure USB cable

Wiring diagram

* Input 1/SOS: Digital Input 1 (negative triggering), E.g. connect SOS panic button

* Input 2: Digital Input 2 (negative triggering), E.g. detecting status of Door open/close

* Input4 : Digital Input 4 (positive triggering), E.g. detecting status of ACC on/off

* Output 1: E.g. Connect relay to cut off engine or fuel

* Output 2: E.g. Connect sirenVCC

* Red wire: Positive, DC In (power source). Input voltage: 9V~36V. 12V suggested.

* GND: NegativeAD Green wire It can be used to connect with fuel sensor etc

Our Service

1. Any inquiries will be replied within 12 hours on workday.

2. Professional manuafacurer and wholesaler for 10 years.

3. OEM available:

* Customized logo or color box
* We can help you to design and put it into production about your idear

4. After-sale service:

* All products will have been strictly Quality checked in workshop before packing

* All our products have 24 mouths warranty, and we are sure our products will be free from maintenance

5. Shipping way: DHL/UPS/Aramex/fedex/air transportation/sea transportation

6. Fast delivery: Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order

7. Payment: T/T , Western Union, Paypal and RMB

OEM ODM truck GPS tracker with built in 2MB memory for data logger Images
